Cables: Ethernet cable
IOCard: Ethernet Card
Performance: See manual for performance guidelines
|
OPC Specifications:
 |
OPC DA (OPC Data Access) 1.0a |
|
OPC DA (OPC Data Access) 2.0 |
|
OPC DA (OPC Data Access) 2.05a |
|
OPC DA (OPC Data Access) 3.0 |
|
Details

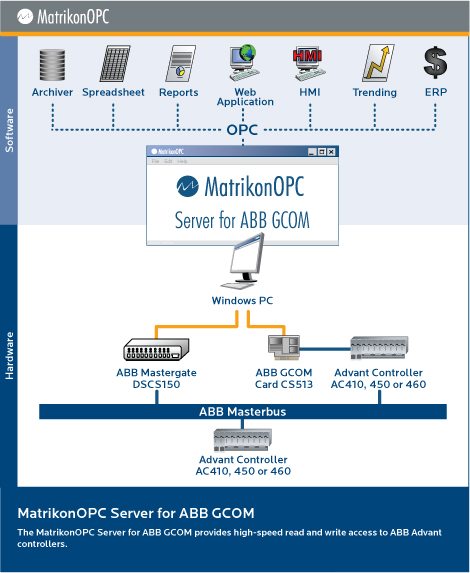

The MatrikonOPC Server for ABB GCOM offers powerful features such as:
- High efficiency processing of received packets
- Detects devices going off the network or network breaks
- Supports optional setting of cyclic tags to bad
- DevLinks auto-recover if the MatrikonOPC Server for ABB GCOM is restarted
- Supports all object types
- Uses GCOM service Manager for network communications
- Optimized object list update requests
- Supports Item Path Aliasing
MatrikonOPC Server for ABB GCOM supports the following data types:
1. Object Types
| Object Type |
C1 |
C3 |
C9 |
D |
E |
| AI |
X |
X |
X |
X |
X |
| AO |
X |
X |
X |
X |
X |
| DAT_BIT |
X |
X |
X |
X |
X |
| DAT_INT |
X |
X |
X |
X |
X |
| DAT_LINT |
X |
X |
X |
X |
X |
| DAT_REAL |
X |
X |
X |
X |
X |
| DI |
X |
X |
X |
X |
X |
| DO |
X |
X |
X |
X |
X |
| MANSTN |
X |
X |
X |
X |
X |
| PIDCON |
X |
X |
X |
X |
X |
| PIDCONA* |
X |
X |
X |
X |
X |
| RATIOSTN |
X |
X |
X |
X |
X |
* MUNIT sub-type for PIDCONA object type is not supported
2. Text Sets
Support is also available for full communication redundancy and fail-over.
|
System Requirements:
PC Hardware
The following PC Hardware is required:
Intel® Pentium® 4 Processor
512 MB RAM
Minimum 32 MB of available hard disk space
CD-ROM driver
Super VGA(800 x 600) or higher-resolution monitor with 256 colors
Mouse pointing device
|
Device Hardware
Advant Controller 400 Series(AC410, AC450, AC460, etc)
Any IEEE 802.3 compliant transceiver
Ethernet cable
Communication
Module |
Carrier
Board |
| CS513 |
SC530 |
| CI543 |
SC510/td>
|
| CI543 |
SC520 |
P4000
MasterGate
MasterGate 230/1
GCOM-card DSCS150 Communication Interface
Connection Unit DSTC190
Cable DSTK126
MasterPiece
MasterPiece 200/1 (such as MP240/1, MP260/1, MP280/1 etc) series
controllers
GCOM-card DSCS150 Communication Interface
Connection Unit DSTC190
Cable DSTK126
|
PC Software
The following Windows Operating Systems will support this OPC Server:
Windows 2000
Windows XP
Windows 2003
Features include:
Support for DDE
Aliases for tag names
Calculation engine
|
|
